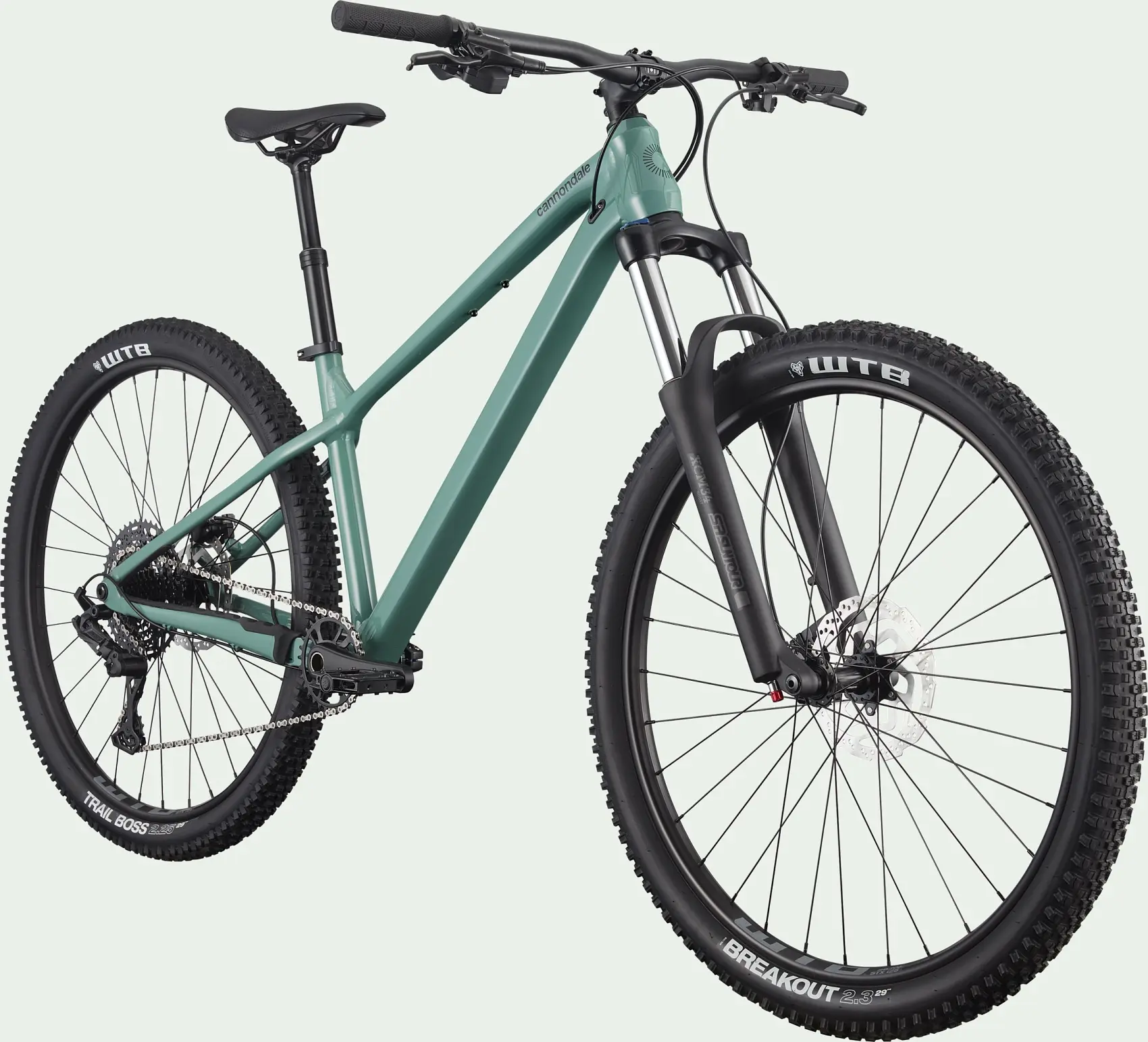

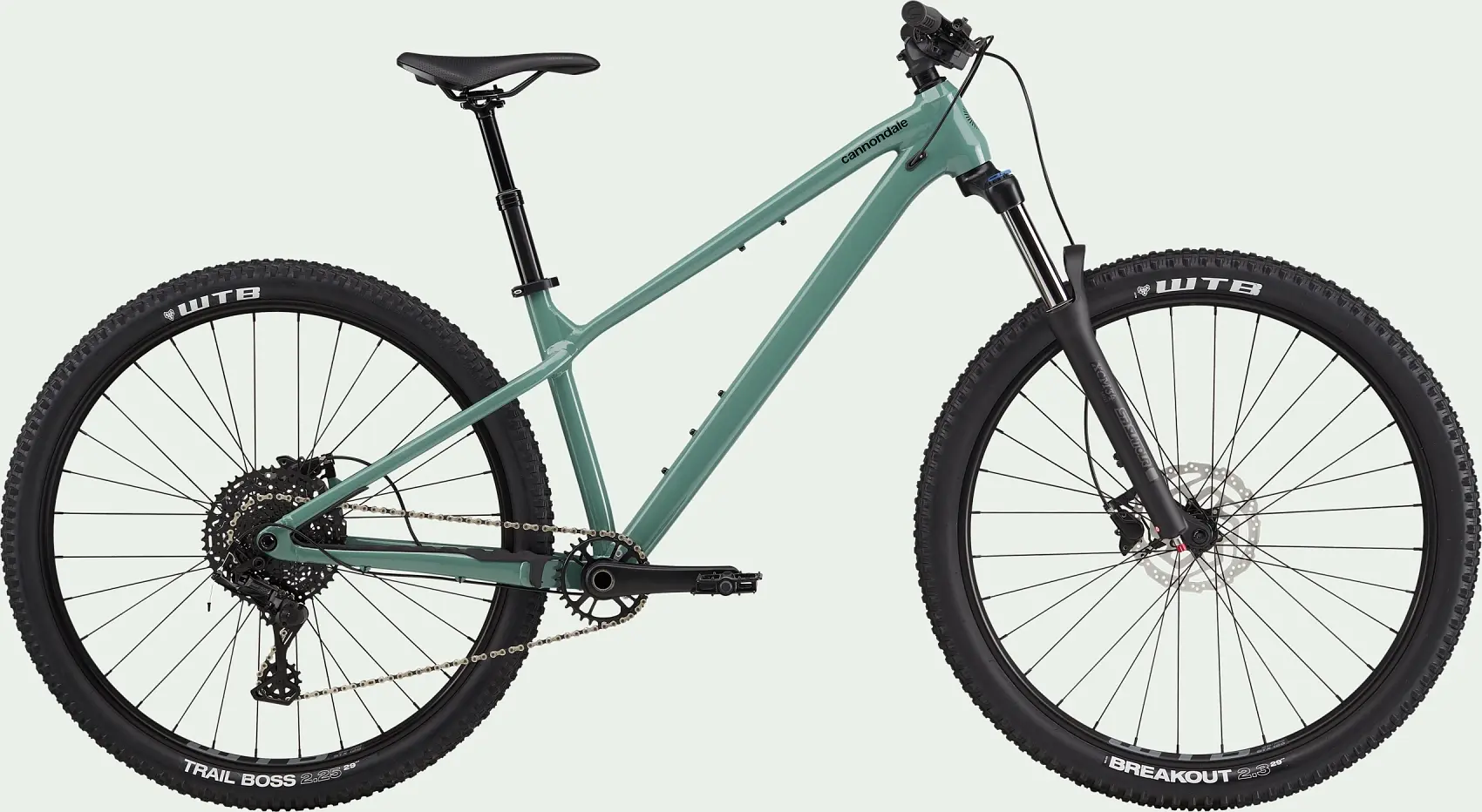

Cannondale Cannodale Habit HT 3

• Platform

  Habit HT
• Model Name

  Habit HT 2
• Model Code

  C262302U

FRAMESET

• Frame

  Habit HT, SmartForm C2 Alloy, tapered headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA 73, 12mm thru axle, Boost 148, 55mm chainline, UDH hanger.
• Fork

  SR Suntour XCR LO Boost 29, 130mm travel, 15mm thru axle, tapered alloy steerer
• Headset

  Integrated Sealed Bearing, Tapered

DRIVETRAIN

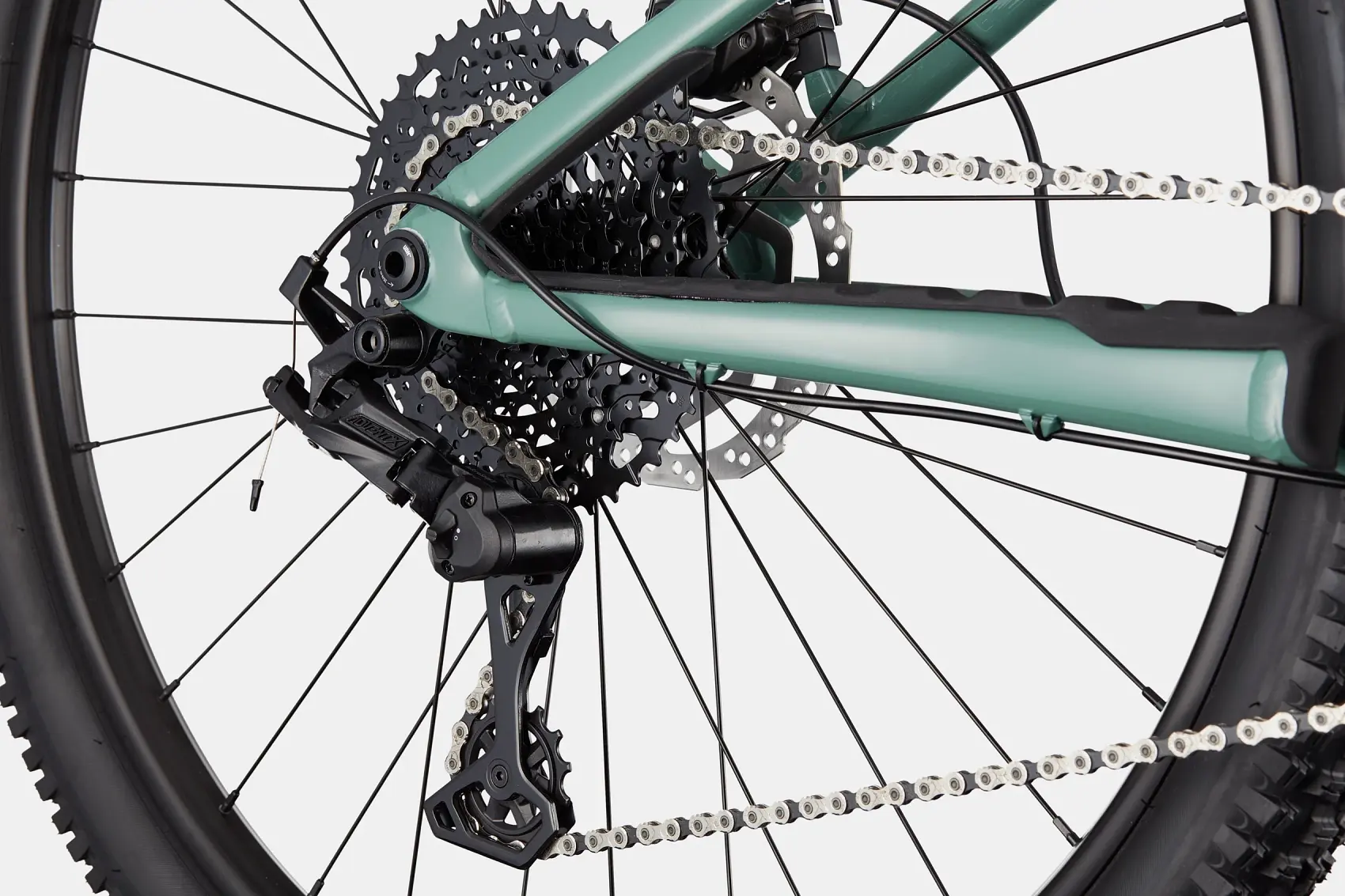

• Rear Derailleur

  microSHIFT Advent X
• Shifters

  microSHIFT Advent X  10-speed
• Chain

  KMC X10, 10-speed
• Crank

  Prowheel, 30T, 55mm chainline
• Rear Cogs

  microSHIFT Advent X, 11-48, 10-speed
• Bottom Bracket

  ProWheel BSA 73

BRAKES

• Brakes

  Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
• Brake Levers

  Shimano MT200 hydraulic disc

WHEELS

• Rims

  WTB STX i30 TCS, 32h, tubeless ready
• Front Hub

  Shimano MT400, 15x110mm thru-axle
• Rear Hub

  Shimano MT400, 12x148mm thru-axle
• Spokes

  Stainless Steel, 14g
• Tires

  WTB Breakout, 29×2.3″, Comp
• Tire Size

  2.3
• Wheel Size

  29

COMPONENTS

• Handlebar

  Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
• Stem

  Cannondale 3, 6061 Alloy, 31.8, 0°
• Grips

  Cannondale Locking Grips
• Saddle

  Cannondale Ergo XC
• Seatpost
  TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL)


  PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
