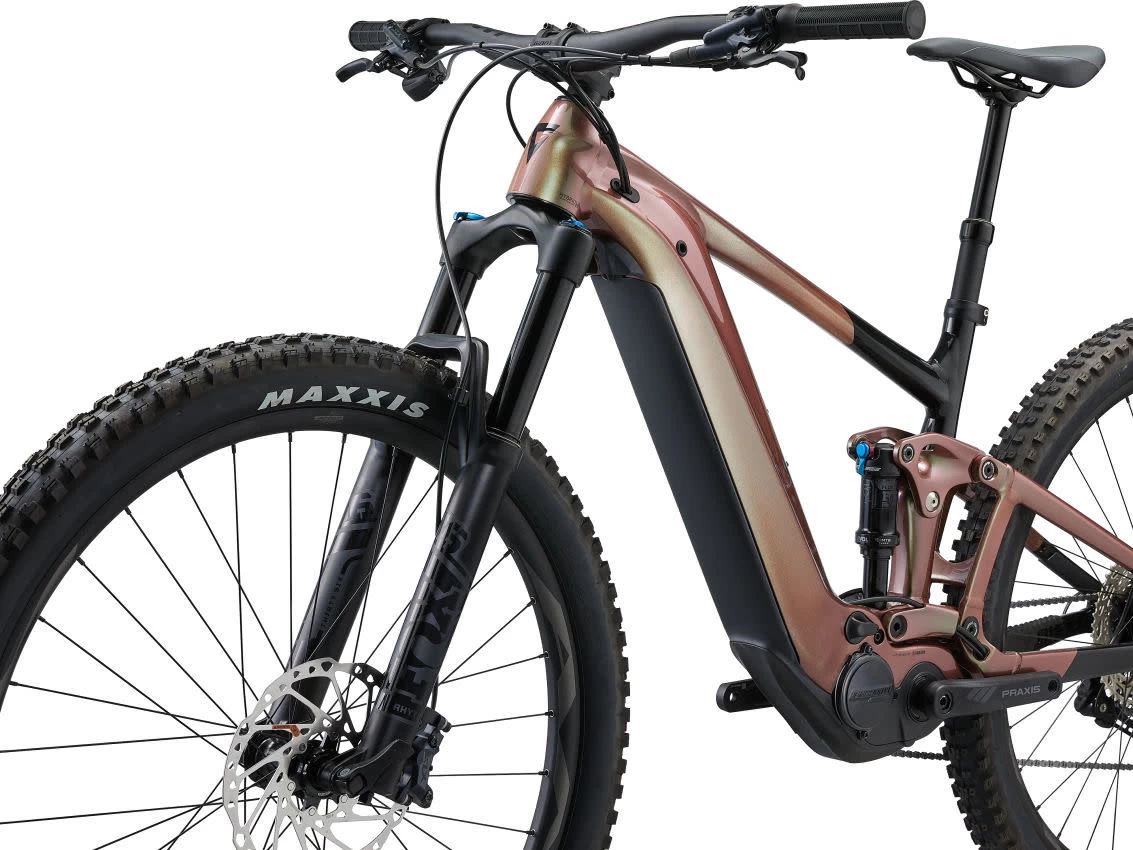

Name: Shop Versatile and Affordable Giant Trance X E + 2 at Bicycle Equipment Store - Great Value Online from Utah America.
SKU: "4712878866119"
Price: 96.99 USD
Availability: InStock

Sale!

Original price was: $396.00.Current price is: $96.99.

Faster up the climbs, longer loops, more singletrack fun on any given day.

SKU: "4712878866119" Categories: Men, Mountain Bikes

Your needs, our top priority.
Sustainable materials, for a better tomorrow.
Satisfaction Guaranteed
The home of quality products.

FASTER UP THE CLIMBS, LONGER LOOPS, MORE SINGLETRACK FUN ON ANY GIVEN DAY. FREE YOURSELF TO PUSH YOUR TRAIL RIDING TO THE NEXT LEVEL WITH THIS POWERFUL, FUN AND SMOOTH-RIDING E-BIKE.

KEY PERFORMANCE FACTORS

Smooth, powerful support

SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

Trail-riding control

Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.

Adaptable to the terrain

Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

RANGE

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPAK 800 / SYNCDRIVE PRO

Range
Extreme: 70 km
Good: 140 km
Ideal: 250 km

TECHS & FEATURES

ALUXX SL ALUMINUM TECHNOLOGY

This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.

HYBRID CYCLING TECHNOLOGY

Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems and SyncDrive motor.

MAESTRO SUSPENSION TECHNOLOGY

Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

TUBELESS SYSTEM

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

SYNCDRIVE PRO

SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant’s high-performance models.

SMART ASSIST

All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.

ENERGYPAK PLUS

This range extender can boost total capacity by 250Wh. It has all the latest technologies combined with an up-to-date design that fits a select number of bikes. It has smart technology so it automatically turns on when your battery loses power, giving you peace of mind that you can reach your destination.

ENERGYPAK

Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding.

RIDECONTROL GO

Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

RIDECONTROL ERGO 3

This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S: 5’4” 5’9”
M: 5’7” 6’0”
L: 5’10” 6’3”
XL: 6’2” 6’6”

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| HIGH	LOW \| HIGH	LOW \| HIGH	LOW \| HIGH
A	SEAT TUBE LENGTH (inch)	15.7	16.7	17.7	18.7
B	SEAT TUBE ANGLE	76.0° \| 76.7°	76.0° \| 76.7°	76.0° \| 76.7°	76.0° \| 76.7°
C	TOP TUBE LENGTH (inch)	22.7 \| 22.6	24 \| 23.8	25.1 \| 25	26.3 \| 26.2
D	HEAD TUBE LENGTH (inch)	3.7	3.9	4.3	4.7
E	HEAD TUBE ANGLE	65.7° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°
F	FORK RAKE (inch)	1.7	1.7	1.7	1.7
G	TRAIL (inch)	4.6 \| 4.8	4.6 \| 4.8	4.6 \| 4.8	4.6 \| 4.8
H	WHEELBASE (inch)	47.4 \| 47.5	48.8 \| 48.7	49.9 \| 50	51.2 \| 51.2
I	CHAIN STAY LENGTH (inch)	18.6 \| 18.6	18.6 \| 18.6	18.6 \| 18.6	18.6 \| 18.6
J	BOTTOM BRACKET DROP (inch)	1.2 \| 0.8	1.2 \| 0.8	1.2 \| 0.8	1.2 \| 0.8
K	STACK (inch)	23.9 \| 23.7	24.1 \| 23.8	24.4 \| 24.2	24.8 \| 24.6
L	REACH (inch)	17.3 \| 17.6	18 \| 18.2	19 \| 19.3	20.1 \| 20.4
M	STAND OVER HEIGHT (inch)	30.8 \| 31.1	30.5 \| 30.9	30 \| 30.3	30.5 \| 30.8
N	HANDLEBAR WIDTH (inch)	30.7	30.7	30.7	30.7
O	STEM LENGTH (inch)	1.6	2	2	2.4
P	CRANK LENGTH (inch)	6.3	6.5	6.5	6.7
Q	WHEEL SIZE	29″	29″	29″	29″

SPECS

Frame	ALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, ‘Boost’ 148×12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
Fork	Fox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-optimized
Shock	Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185×52.5mm Trunnion mount, custom tuned
Handlebar	Giant Contact 35 Trail, 35x780mm
Grips	Giant New trail grip Half-waffle/single lock-on
Stem	Giant Contact SL 35
Seatpost	Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
Saddle	Giant Romero E
Pedals	N/A
Shifters	Shimano SLX
Front Derailleur	MRP HD2 co-moulded chain guide
Rear Derailleur	Shimano SLX, 12-speed, Shadow+
Brakes	Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm
Brake Levers	Shimano Deore
Cassette	Shimano CS-M6100-12, 10-51T, 12-speed
Chain	KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset	Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
Bottom Bracket	n/a
Rims	Giant AM 29″, Tubeless ready, 30mm inner width
Hubs	Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Spokes	Sapim E-Lite [R] Race [F], e-bike optimized
Tires	Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29×2.6″ Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Extras	Tubeless kit (liquid, valves, levers, manual, tool)
Weight	The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Motor	SyncDrive Pro, 85Nm, powered by Yamaha
Controller	RideControl GO integrated in TT, RideControl Ergo 3
Display	ANT+ Wireless display compatible
Battery	EnergyPak Smart 800, EnergyPak Plus 250Wh range extender compatible
Lock	Torx 25 Battery Lock with built-in Torque limiter
