Sale!
Original price was: $361.00.$98.99Current price is: $98.99.
Performance gains can be found everywhere and obsession is part of the game.
- Your needs, our top priority.
- Sustainable materials, for a better tomorrow.
- Satisfaction Guaranteed
- The home of quality products.

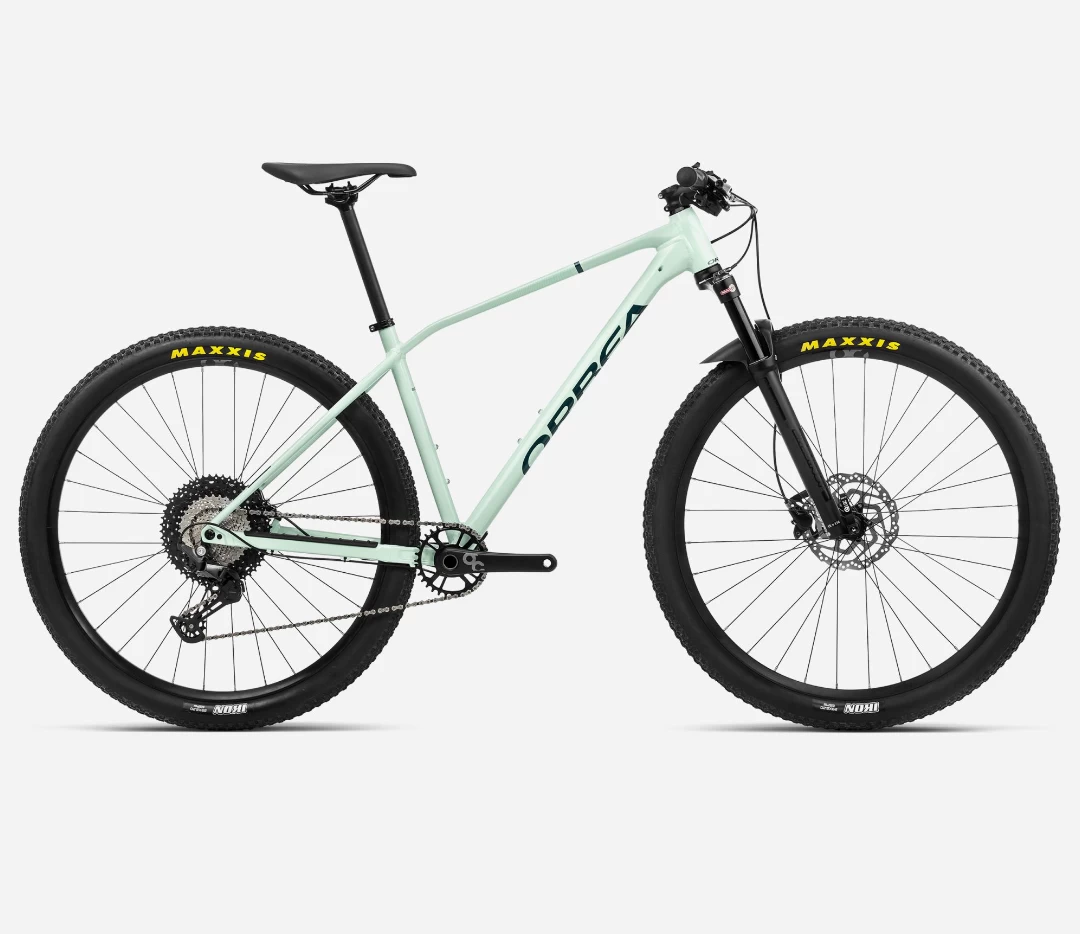

SPECIFICATIONS- Ice Green
| Frame | Orbea Alma Hydro Alloy, Boost 12×148, BSA BB, Internal cable routing |
| Fork | RockShox Judy Silver TK Crown adjust QR Solo Air 100mm |
| Crankset | OC1 Alloy forged Boost 32t |
| Headset | FSA 1-1/8 – 1-1/2″ Integrated |
| Handlebar | OC1 Flat 31.8mm x 740mm |
| Stem | Alloy 31.8mm interface 7° |
| Shifters | Shimano Deore M6100 |
| Brakes | Shimano MT201 Hydraulic Disc |
| Cassette | Sun Race 11-51t 12-speed |
| Rear Derailleur | Shimano Deore M6100 SGS Shadow Plus |
| Chain | KMC X12 |
| Wheels | Mach1 Klixx 23c Tubeless Ready |
| Tires | Maxxis Ikon 2.20″ FB 60tpi Dual |
| Seatpost | Alloy 27.2 Offset 0 |
| Saddle | Selle Royal 2058 DRN |
SPECIFICATIONS- Red
| Frame | Orbea Alma Hydro Alloy, Boost 12×148, BSA BB, Internal cable routing |
| Fork | SR Suntour RAIDON 32 RLR 100mm Boost |
| Crankset | Forged alloy, 32t, Boost |
| Headset | Acros Alloy 1-1/8 – 1-1/2″ Integrated |
| Handlebar | Alloy, 31.8mm, Flat, 740mm, Sweep 9 |
| Stem | Alloy, 7º |
| Shifters | Shimano Deore M6100 |
| Brakes | Shimano MT201 Hydraulic Disc |
| Cassette | Sun Race 11-51t 12-speed |
| Rear Derailleur | Shimano Deore M6100 SGS Shadow Plus |
| Chain | KMC X12 |
| Wheels | Mach1 Klixx 23c Tubeless Ready |
| Tires | Maxxis Ikon 2.20″ FB 60tpi Dual |
| Seatpost | Alloy 27.2 Offset 0 |
| Saddle | Selle Royal 2058 DRN |
GEOMETRY
| Size | S | M | L | XL |
| 1 – Seat Tube | 400 | 445 | 483 | 533 |
| 2 – Top Tube | 562 | 596 | 620 | 650 |
| 3 – Head Tube | 100 | 110 | 120 | 135 |
| 4 – Chain Stay | 435 | 435 | 435 | 435 |
| 5 – BB Height | 309 | 309 | 309 | 309 |
| 6 – BB Drop | 61 | 61 | 61 | 61 |
| 7 – Wheelbase | 1092 | 1127 | 1152 | 1184 |
| 8 – Head Angle | 68° | 68° | 68° | 68° |
| 9 – Seat Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| 10 – Standover | 721 | 735 | 791 | 829 |
| 11 – Reach | 395 | 426 | 448 | 474 |
| 12 – Stack | 602 | 612 | 621 | 635 |
| 13 – Fork Length | 501.6 | 501.6 | 501.6 | 501.6 |
| 14 – Offset | 44 | 44 | 44 | 44 |
ERGONOMICS & SIZING
| Size | Crank | Stem | Handlebar | Rider Measurements (cm/in) |
| S | 170 | 70 | 740 | 155-170 / 5’1″-5’7″ |
| M | 175 | 70 | 740 | 165-180 / 5’5″-5’11” |
| L | 175 | 90 | 740 | 178-190 / 5’10”-6’3″ |
| XL | 175 | 100 | 740 | 185-198 / 6’1″-6’6″ |
| Color | Black – Ice Green, Metallic Red/White Gloss, Ice Green/Ocean |
|---|---|
| Size | M, L |
