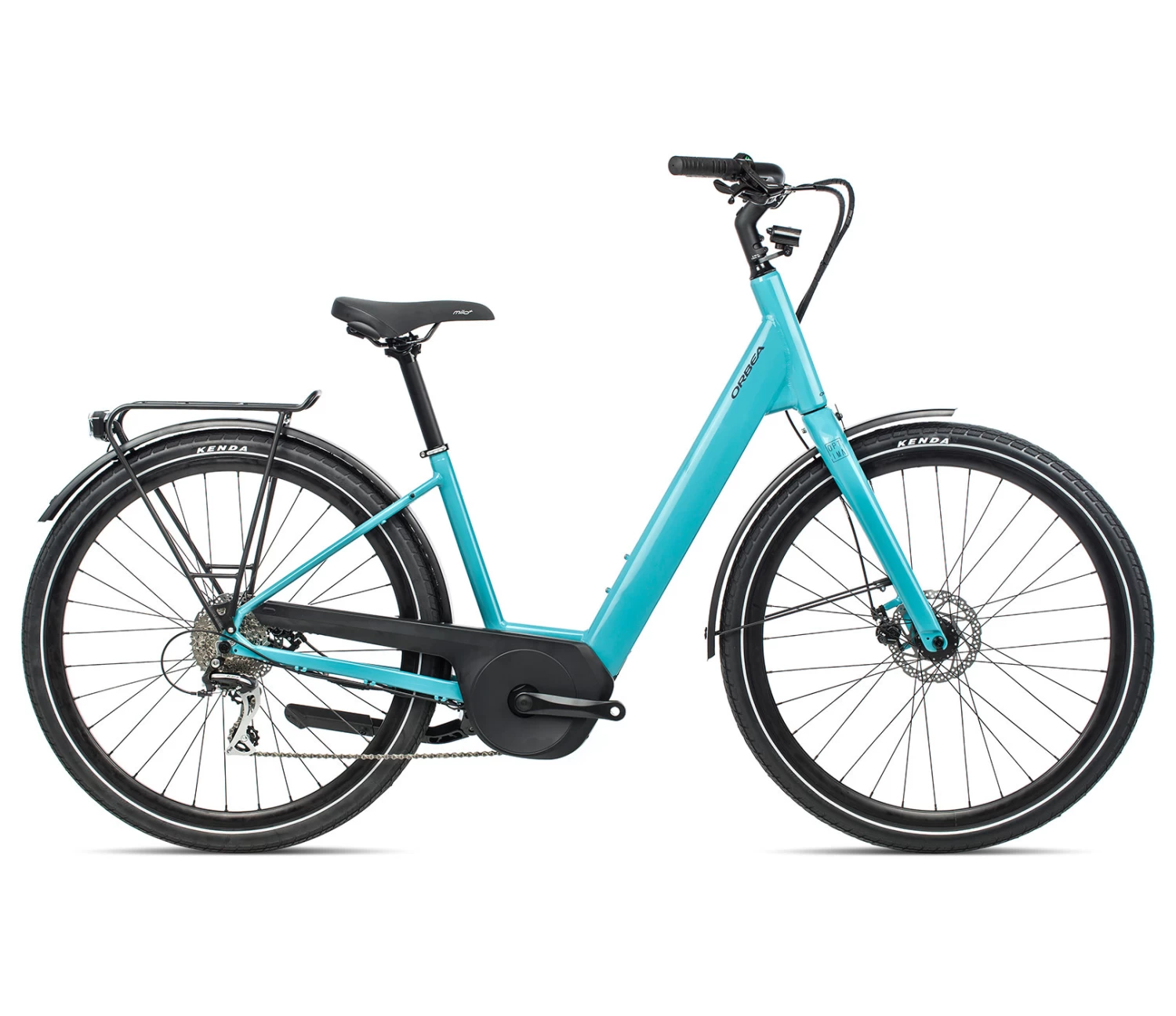

Orbea Optima E50 Electric Bike (E-BIKE)

Optima is an apparently “normal” bicycle, but both the architecture and the ergonomics of the new Optima are innovative. It is a bike designed to be used as an electric bicycle from the conceptual design phase. This has meant revamping the product to the point that even its architecture changed.

SPECIFICATIONS

Frame	Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery
Fork	Optima 400mm Alloy Post mount
Crankset	Prowheel PRA105 42t
Headset	VP-Z104PD 1-1/8″ Semi-Cartridge
Handlebar	Orbea City Riser Alu 640mm
Stem	Orbea TDS-D617
Shifters	Shimano SL-M315
Brake Levers	Shimano Alivio BL-T4010
Brakes	Shimano TX805 Mechanical Disc
Cassette	Sun Race CSM66 11-34t 8-Speed
Rear Derailleur	Shimano Acera M360
Chain	KMC X8
Wheels	READY GR 29-700 C
Tires	Kenda 1172 700x50c
Seatpost	Alloy 31.6x400mm Offset 0
Saddle	Selle Royal Milo Plus DR
Rear Carrier	Orbea Optima hidden stays
Mudguard	SKS EDGE Alloy C56R
Front Light	Joss Spanninga Kendo Steps
Rear Light	Koss Spanninga Lineo XDS Dinamo
Chainguard	Sunon A017
Quick Stand	Ursus Power single adjust central
Motor	Ebikemotion X35 Plus 20mph (32kmh)
Battery	Ebikemotion 36V/6.9A 248Wh ANT+
Display
Charger	Ebikemotion X35
Remote2	Ebikemotion iWoc TRIO
Front Wheel Axle	Safety Lock



GEOMETRY

Size	S	M	L
1 – Seat Tube	405	450	500
2 – Top Tube	625	648	693
3 – Head Tube	190	240	270
4 – Chain Stay	510	510	510
5 – BB Height	272.5	272.5	272.5
6 – BB Drop	95	95	95
7 – Wheelbase	1163	1187	1233
8 – Head Angle	70°	70°	70°
9 – Seat Angle	72°	72°	72°
10 – Reach	397	405	440
11 – Stack	662	709	737
12 – Fork Length	433	433	433
13 – Offset	55	55	55



ERGONOMICS & SIZING

Size	Crank	Stem	Handlebar	Rider Measurements (cm/in)
S	152	60	640	150-165 / 4’11”-5’5″
M	152	60	640	165-180 / 5’5″-5’11”
L	152	60	640	180-200 / 5’11”-6’7″
