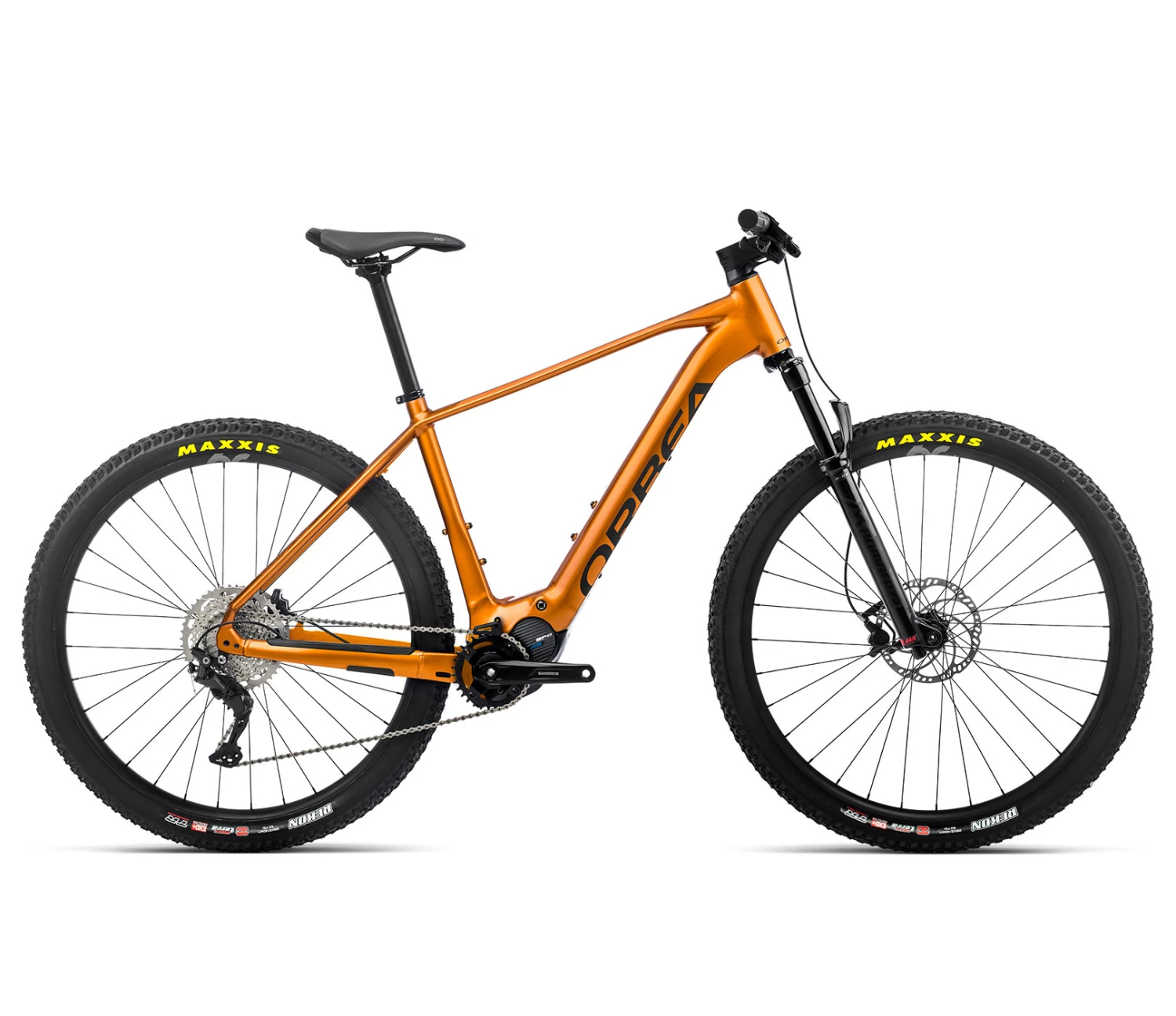

Orbea URRUN 30 Electric Bike (E-BIKE 2022)

DETAILS

Urrun means “far” in the Basque language. Without a doubt, Urrun is an ebike to take you far and explore distant horizons, but the name holds more significance to Orbea. Urrun is about the long journey they embarked upon with this bike and how far they have come. With new technologies and innovative integrations, it’s safe to say Orbea is proud to have Urrun in the family. Escape, enjoy bigger adventures, go further and explore harder.

SPECIFICATIONS

Frame	Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148×12, carrier and kickstand compatible
Fork	Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
Chainring	Alloy EP8 32t
Crank	Shimano Steps EM600
Headset	FSA 1-1/2″ Integrated Aluminium Cup
Handlebar	OC 35mm 20mm Rise 780mm
Stem	OC1 35mm interface -6º
Shifters	Shimano Deore M4100
Brakes	Magura MT30 Hydraulic Disc Easy Route Connection
Cassette	Shimano CS-M4100 11-46t 10-Speed
Rear Derailleur	Shimano Deore M5120 SGS Shadow Plus
Chain	KMC e10 Turbo Silver
Wheels	Orbea OC1 29c Tubeless Ready
Tires	Maxxis Rekon 2.40″ 120 TPI 3CMaxxTerra Exo+ TLR
Pedals	VP-537 Black
Seatpost	Alloy 31.6 Offset 0
Saddle	Selle Royal Vivo
Chainguide	Orbea Chainguide
Motor	Shimano EP8-RS
Battery	Orbea Internal 540Wh
Display	Shimano SC-E5003
Charger	Orbea Smart Charger (42V-4A)



GEOMETRY

Size	S	M	L	XL
1 – Seat Tube (C-T)	400	453	483	533
2 – Top Tube (EFF)	565	579	608	645
3 – Head Tube	110	115	132	153
4 – Chain Stay	445	445	445	445
5 – BB Height	322	320	320	320
6 – BB Drop	54	56	56	56
7 – Wheelbase	1143	1150	1173	1220
8 – Head Angle	65.5°	66°	66°	66°
9 – Seat Angle	74.8°	74.6°	74.6°	74.5°
10 – Standover	826	854	877	910
11 – Reach	395	405	440	460
12 – Stack	631	628	647	666
13 – Fork Length	533.5	533.5	533.5	533.5
14 – Rake	44	44	44	44

ERGONOMICS

Size	Crank	Stem	Handlebar
S	170	70	780
M	170	70	780
L	170	70	780
XL	170	70	780



SIZE GUIDE

Size	Height (cm)	Height (in)
S	155-170	61.1-66.9
M	165-180	65.0-70.9
L	175-190	70.1-74.8
XL	185-200	72.8-78.74
